LINIO NEON GRAZE
Professional Illumination for Outdoor lighting Projects
LINIO NEON GRAZE, with 3-Step and ONE BIN ONLY to maintain the best color consistency. With 24 LEDs per meter, 24W/M, CCT from 2700K-6500K IP65 makes it perfect for external Wall Wahser lighting projects. Always presents very impressive of eye-catching effect. Also could be very precisely and professionally used to highlight specific areas as required.

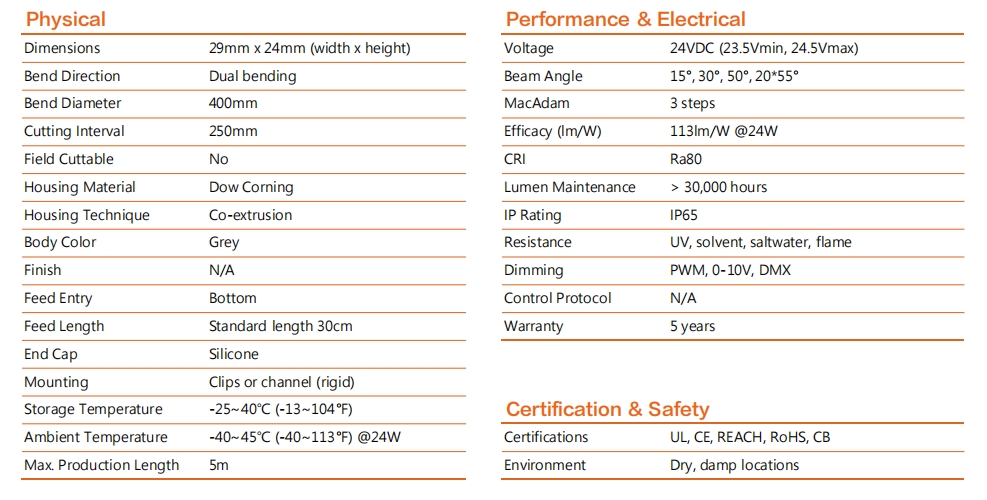

Voltage | DC24V (23.5Vmin, 24.5Vmax) |
LED PIN Temperature | Max. 65℃ /149o F |
Storage Temperature | -25℃ /-13o Fmin, 40℃ /104o Fmax |
SMD Type | 2835 |
LEDs/m | 24LEDs/m |
Efficacy (lm/W) | 113lm/W(4000K, 30° ) |
Power/m | 24W/M |
SDCM | 3 ( 2700K, 3000K, 4000K) |
CRI | Ra80 |
Max Current/LED | 41.7mA@24W/m |

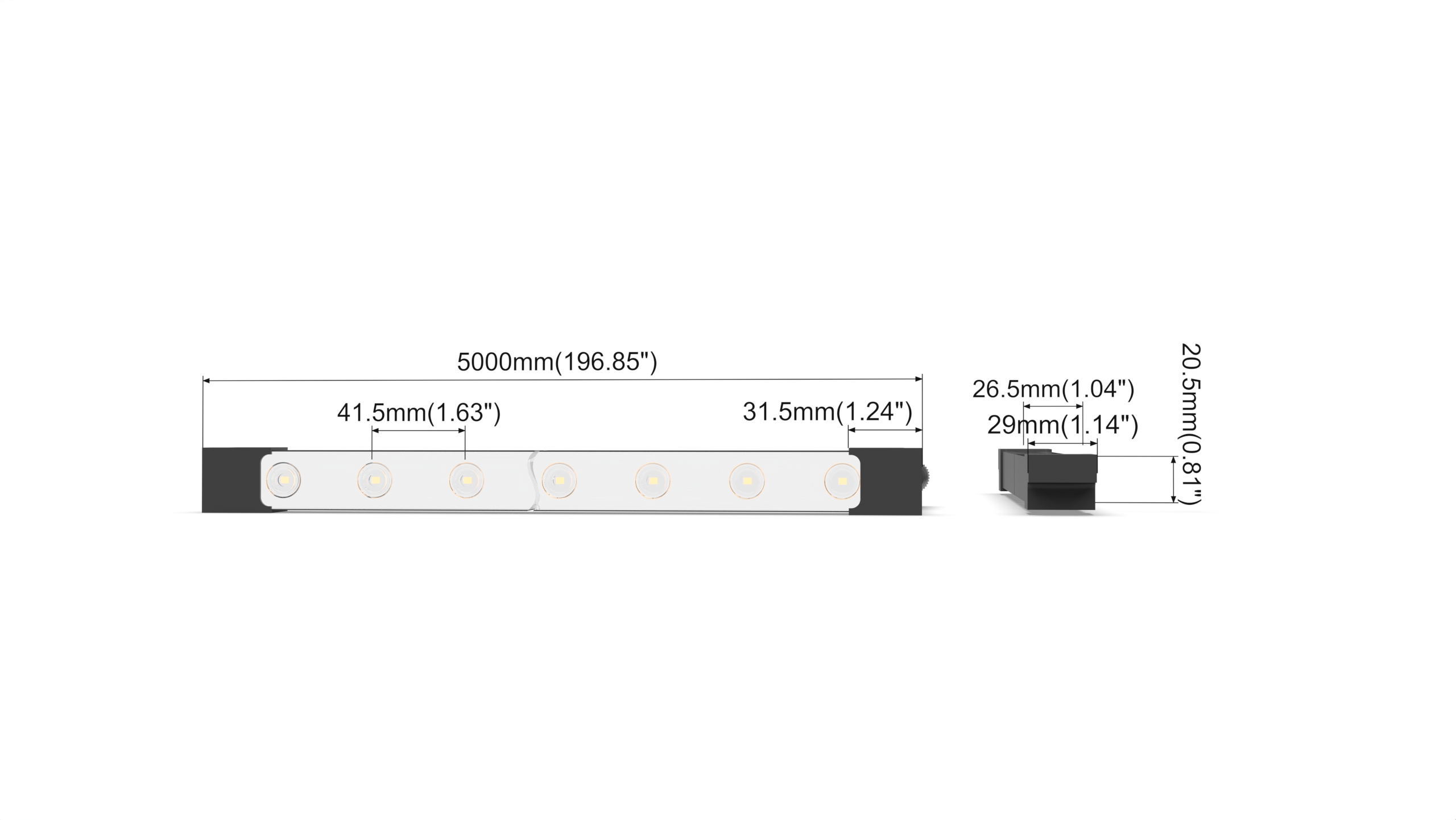

Cut Increments | 41.5mm |
Waterproof Rate | IP65 |
Warranty | 3 Years |
LUMEN/M | 15° | 30° | 50° | 18*20° | 20*35° | 20*55° |
2700K | 2263 | 2394 | 2525 | 1710 | 1704 | 1652 |
3000K | 2499 | 2517 | 2558 | 2261 | 2793 | 1735 |
4000K | 2631 | 2727 | 2450 | 2189 | 1772 | 2929 |
6500K | 2005 | 2025 | 1906 | 2437 | 2211 | 2879 |
Max. Run Length(M) | 5 | 5 | 5 | 5 | 5 | 5 |
Features

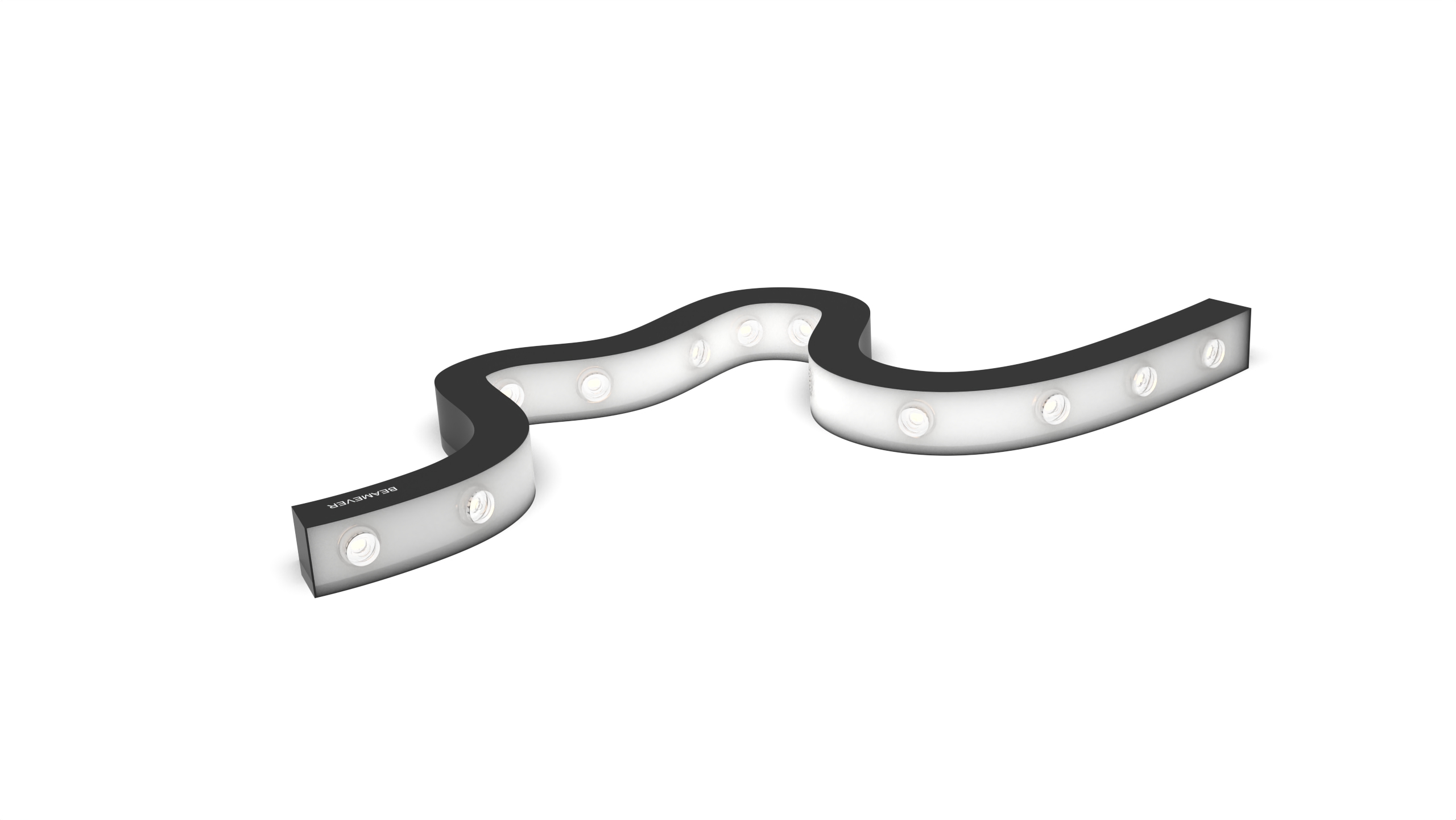

Flexibility
Flexible wall washer, both top bend and side bend, 6 different angles to make more possibilities for your different projects.
Accessories
Matched-extrusion, angle clips, and PSU 24V/150W IP67, non-dimmable & 3 in 1 dimming function, white, 100-305V supply as the illuminance adjustment.
Application
IP65 makes LINIO NEON GRAZE specific for outdoor and semi-outdoor projects. 24V with 23.5V min & 24.5V max.
Environment
Recyclable, non-toxic, green of power-consumption, and energy-saving. Plus heat-dissipation system helps to maintain longer lifespan.
