Perfect & Professional to Display Flawless and Exquisite Illuminance

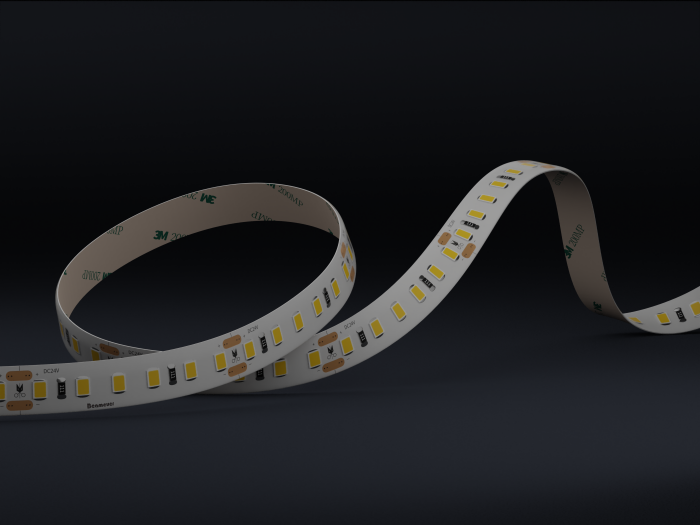

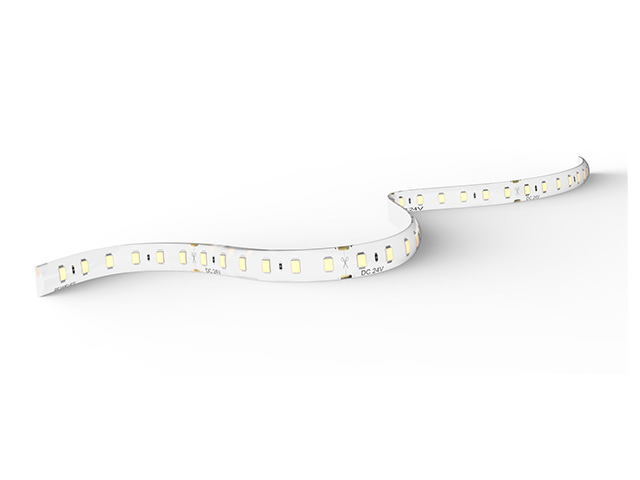

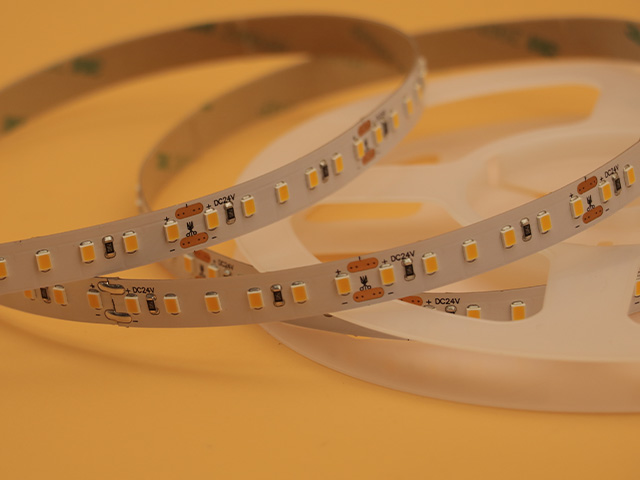

AERO TAPE IP54 with DC24V as 23.5V of min & 24.5V as max. Plus the dimension of 120 high quality 2835 LEDs per meter and a width of 10mm. As 3-Step of ONE BIN ONLY maintain high color-consistency. CCT option from 2700K to 6500K, and with IP54 waterproof which perfectly suit for all internal projects, for instance, exhibition-halls, SPA rooms, five-starts hotels, or schools, etc. Very simple and easy installation, for instance to mount on smooth surfaces very easily cause its’ 3M tape as the back-support. Always and forever to present the best illuminance outcome for any specific area as you wish.
| Voltage | DC24V(23.5Vmin & 24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oF min & 60oC/140oF |
| Lumen Efficiency | 100lm/w(4000K) |
| SDCM | 3 (2700K, 3000K, 4000K) |
| Ra | Ra90; Ra80 optional |
| Max. current/LED | 49.6mA |
| Unit Cut | 50mm/1.97'' |
| Waterproof Rate | IP54 |
| Warranty | 5 Years |
For Beamever United States
| LM/FT | 1.46W | 2.93W | 4.39W | 5.85W | 7.32W |
| 2700K | 128 | 269 | 390 | 520 | 668 |
| 3000K | 138 | 277 | 416 | 536 | 705 |
| 3500K | 143 | 287 | 427 | 574 | 717 |
| 4000K | 145 | 291 | 430 | 576 | 722 |
| 6500K | 149 | 295 | 437 | 577 | 719 |
| Max. Run Length (M) | 16.4FT | 16.4FT | 16.4FT | 16.4FT | 16.4FT |
For Beamever International
| LM/M | 4.8W | 9.6W | 14.4W | 19.2W | 24W |
| 2700K | 500 | 872 | 1272 | 1655 | 1805 |
| 3000K | 539 | 927 | 1365 | 1758 | 2032 |
| 3500K | 549 | 952 | 1388 | 1782 | 2034 |
| 4000K | 557 | 978 | 1414 | 1868 | 2111 |
| 6500K | 564 | 996 | 1432 | 1894 | 2134 |
| Max. Run Length (M) | 5M | 5M | 5M | 5M | 5M |
Features
Protective Systems
IP54 waterproof, UV resistant, solvents resistant, and heat-dissipation function. Be made by imported advanced silicone material, and extremely durable long-lifespan. Totally green-material without toxic, recyclable, and maintain energy-saving.
Flexibilities
With wonderful features of flexibility, which presents as cuttable, dimmable, and optional all the time. E.g., CRI Ra90 or CRI Ra80 for satisfying various needs. Frees you more spaces to do creative lighting designs.
Installation
Easy and quick installed process, e.g., to mount on the smooth surfaces easily cause the 3M tape as the back-support. Totally achieve the goal of time-saving & cost-saving.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape and connectors on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology.
| Specification Sheet |
| AERO TAPE IP54 SPEC (by ft) |
