Always Presenting the Best Homogeneous Lighting Effect for Your Projects

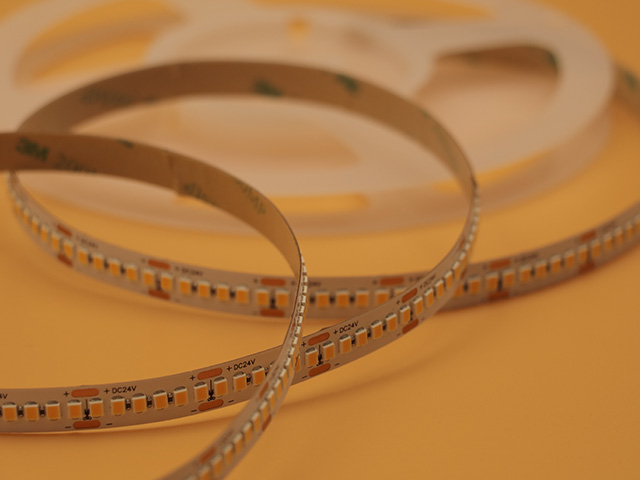

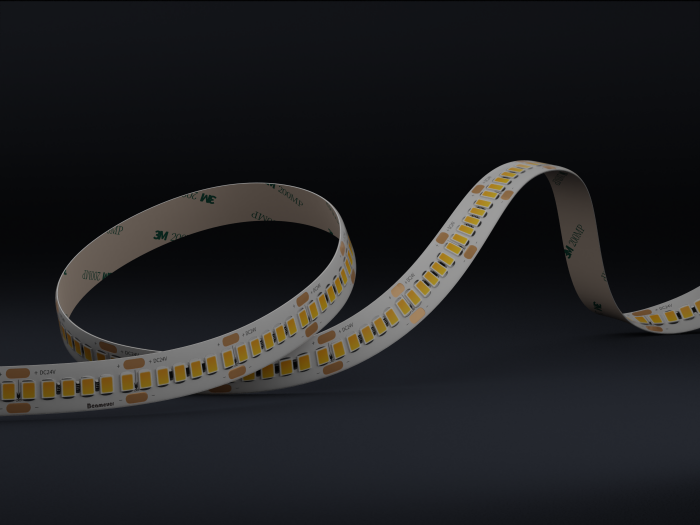

AERO TAPE HD IP54 as mainly internal lighting project contributor, similar occasions as luxury hotels, schools, shopping malls, or other places. With typical lumen efficiency of 98 lm/w@4000k. Plus 240 high quality LEDs per meter and a width of 10mm dimension. Within safe-power range of DC24V specific as 23.5V min, and 24.5V max. 3-Steps of ONE BIN ONLY to maintain best color-consistency for each of details within your projects. Color white, natural white, warm white, all available from range of 2700K to 6500K.
| Voltage | DC24V(23.5Vmin &24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oC |
| Storage Temperature | -25oC/-13oF min & 60oC/140oF |
| Lumen Efficiency | 98lm/w(4000K) |
| SDCM | 3 (2700K, 3000K, 4000K) |
| Ra | Ra90; Ra80 optional |
| Max. current/LED | 23.3mA |
| Unit Cut | 25mm/0.98'' |
| Waterproof Rate | IP54 |
| Warranty | 5 Years |
For Beamever United States
| LM/FT | 1.46W | 2.93W | 4.39W | 5.85W | 7.32W |
| 2700K | 129 | 271 | 393 | 523 | 700 |
| 3000K | 138 | 280 | 419 | 539 | 705 |
| 3500K | 144 | 287 | 429 | 573 | 714 |
| 4000K | 145 | 291 | 432 | 578 | 716 |
| 6500K | 150 | 295 | 437 | 576 | 716 |
| Max. Run Length (FT) | 16.4FT | 16.4FT | 16.4FT | 16.4FT | 16.4FT |
For Beamever International
| LM/M | 4.8W | 9.6W | 14.4W | 19.2W | 24W |
| 2700K | 473 | 1282 | 1357 | 1627 | 2019 |
| 3000K | 506 | 1367 | 1494 | 1692 | 2155 |
| 3500K | 515 | 1376 | 1515 | 1702 | 2173 |
| 4000K | 529 | 1526 | 1562 | 1829 | 2296 |
| 6500K | 526 | 1575 | 1542 | 1819 | 2263 |
| Max. Run Length (M) | 5M | 5M | 5M | 5M | 5M |
Features
Protection
IP54 protection with top-class silicone, UV resistant, and solvents resistant. Plus manipulated with heat dissipation system to protect itself. To ensure very durable long-term lighting-performance, and achieve the time & cost saving goal.
Flexibilities
CRI Ra90 and Ra80 as optional choices to satisfy various requirements. Also with great features of cuttable which to decide what specific length you want. Dimmable as the WHT color modification. Everything makes more possibilities when you are planning the projects.
Practical-applications

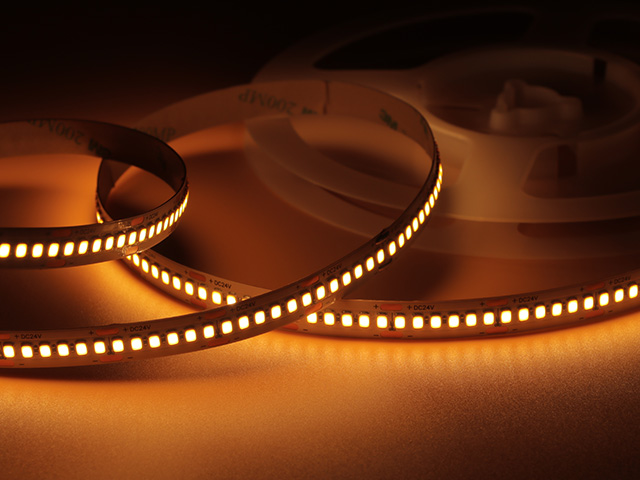

Presents very beautiful & homogeneous lighting effect. To decorate any internal spaces, such as meeting rooms, exhibition halls, residential areas, or some places in illuminated needs. Super enduring lifespan, cause the high-quality of material contribution-effort.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape and connectors on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology. And the male and female connectors allow easier connections plug and play.
| Specification Sheet |
| AERO TAPE HD IP54 SPEC (by ft) |
