Adjustable and Tunable WHT Color Designing

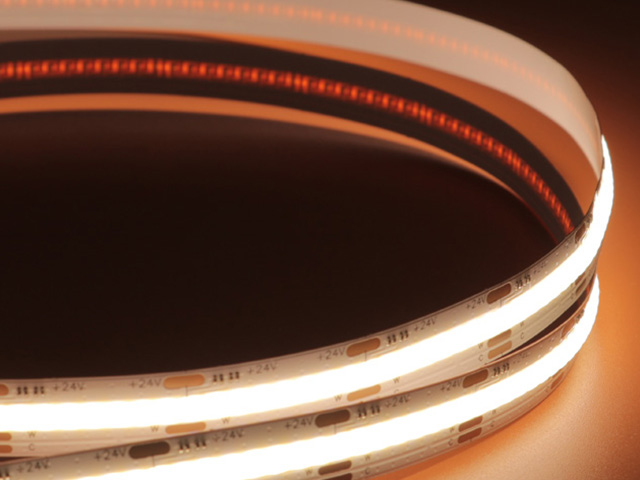

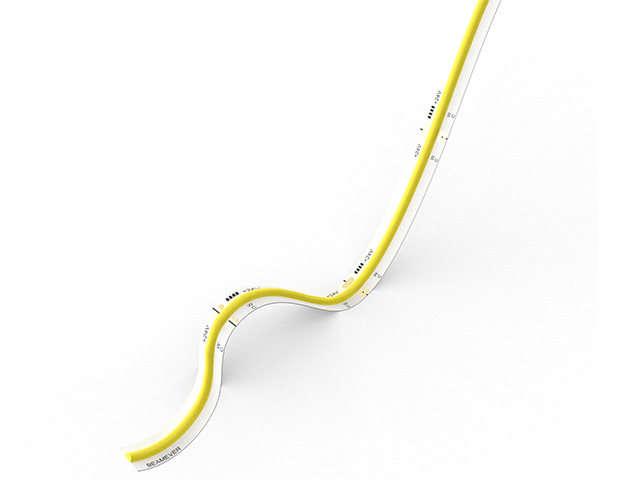

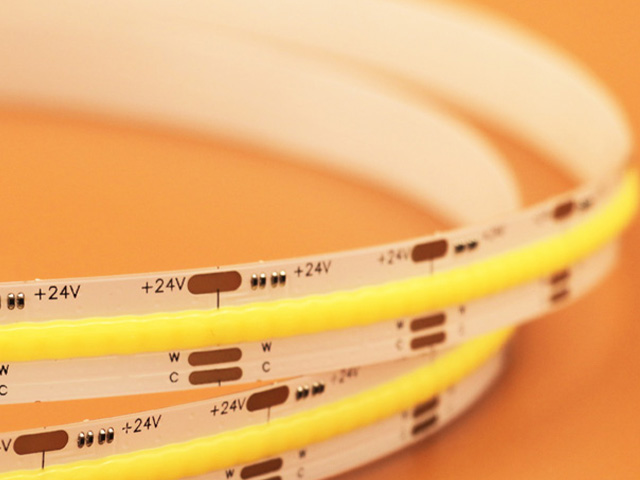

NOVA TAPE TW is a tunable white tape, which adjustable white color options from warm white 2700K to cool white of 6500K. Adopt DC24V include 23.5V as min & 24.5V as max. And CRI Ra90 & Ra80 as the option for your lighting effects. However, the IP20 as the essential feature for the most interior projects. Similar applications such as business meeting-rooms, international apartments, inside of bar, or interior design of commercial building.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oF min 60oC/140oF max |
| Lumen Efficiency | 107lm/w@2700K+6500K |
| SDCM | 3 (2700K, 3000K, 4000K) |
| Ra | Ra90 |
| Max. current/LED | 8.6mA |
| Unit Cut | 27.8mm/1.09" |
| Waterproof Rate | IP20 |
| Warranty | 5 Years |
For Beamever United States
| CCT | Lumen/ft | Max. Watt (W/ft) | Max. Run Length (ft) |
| 2700K | 229 | 2.29 | 16.40 |
| 6500K | 269 | 2.29 | 16.40 |
| 2700K+6500K | 489 | 4.57 | 16.40 |
For Beamever International
| CCT | LM/Mtr | Max. Watt | Max. Run Length |
| 2700K | 750 | 7.5 | 5 |
| 6500K | 881 | 7.5 | 5 |
| 2700K+6500K | 1605 | 7.5 | 5 |
Features
Illuminance
Lumen efficiency is 107 LM/W, and ONE BIN ONLY of color consistency. Brings super homogeneous, tunable-light, elegant, and beautiful outcome for each of your projects. 3-Steps of ONE BIN ONLY ensures the perfect color consistency.
Application
Being dot-free, dust-free, flexible, cuttable, and full protect lights & devices. Installation with pre-wired & dimmable LED tape.
Performance
Extremely durable lifespan, super excellent working, protective of heat-dissipation system to ensure balance of inside lights & devices, and so flexible to make different lighting ideas come true.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology. And the male and female connectors allow easier connections plug and play.
