Offers You Very Fantastic& Tunable White-light As Warm & Cold Temperatures

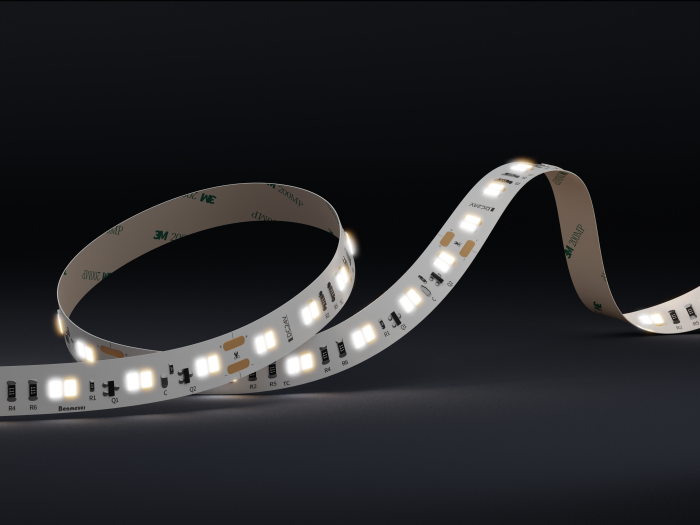

AERO TAPE DTW apply 120 high quality LEDs per meter and a width of 10mm. DC24V as 23.5Vmin & 24.5Vmax to secure the power-applying. Adopt 3-Steps of ONE BIN ONLY to ensure perfect color consistency. Stays CRI Ra90 to present the real beautiful coloring, & CRI Ra80 as the optional to meet your different needs. And IP20 as the essential feature of doing the majority indoor projects. It could be used in business offices, corridors, residential-areas, shopping malls, or hotels. It can offer you fantastic tunable light, effectively and elegantly highlighting certain areas with charming lighting and bringing your project to light.
| Voltage | DC24V(23.5Vmin &24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oF min 60oC/140oF max |
| Lumen Efficiency | 105lm/W |
| Color | 2100-3500k |
| Ra | Ra80 |
| Max current/LED | 30mA |
| Unit Cut | 100mm/3.94" |
| Waterproof rate | lP20 |
| Warranty | 5 years warranty |
For Beamever United States
| CCT | Lumen/ft | Max. Watt (W/ft) | Max. Run Length (ft) |
| Dim to Warm 2100-3500K | MAX Lumen 460 | 4.39 | 16.4 |
For Beamever International
| CCT | LM/Mtr | Max. Watt | Max. Run Length |
| Dim to Warm 2100-3500K | MAX Lumen 1502 | 12 | 5 |
Features
Illuminance
Free to dim the colors smoothly from 2100K to 3500K. Stays CRI Ra90 to present the real beautiful coloring, & CRI Ra80 as the optional to meet your different needs. Lumen efficiency as 125 LM/W.
Application
It can offer you fantastic tunable light, effectively and elegantly highlighting certain areas with charming lighting and bringing your project to light. Its excellent flexibility and cuttability offer many possibilities and great freedom of design. Besides, with cold white and warm white LEDs in one tape, you can create different atmosphere through changing the color temperature.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology. And the male and female connectors allow easier connections plug and play.
Internal Projects
Available for the majority of indoor, e.g., luxury hotel in the center of New York, the most popular Outlets shopping malls, the exhibition-hall in Paris, or the most commercial style of business building in Wall-Street. Totally inside of lighting decoration, and stays the presenting the best illuminance all the time.
| Specification Sheet |
| AERO TAPE DTW SPEC (By ft) |
| AERO TAPE DTW SPEC (By meter) |
| IES |
| AERO TAPE DTW_IESNA2002 |
