Provide the Best Color-Consistency, and Colorful Illuminance

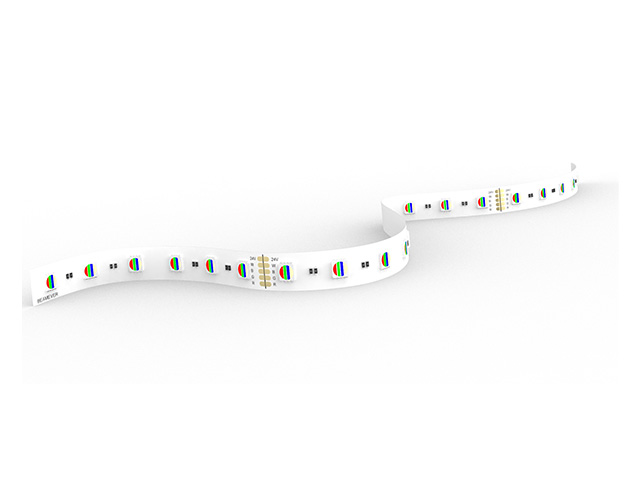

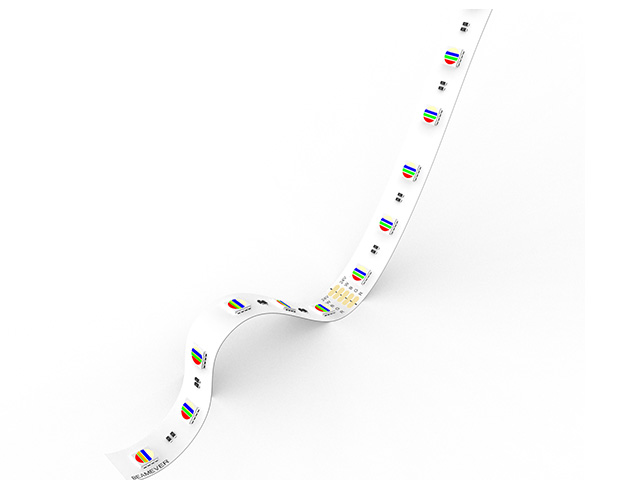

BELA TAPE RGBW with 4-in-1 5050 LED (RGB+White), of 60 LEDs/M and a width of 12mm. ONE BIN ONLY to maintain the most perfect of color consistency. High CRI Ra90 to present the real-astonished beautiful color, plus the CRI Ra80 is optional to meet your different needs. DC24V (23.5Vmin, 24.5Vmax). And lumen efficiency as 61 LM/W of (4000K). Applicable as IP20 for many interior places, such as inside of restaurants, airports, shopping malls, business offices, or any other decorative indoor-projects. Generally, to create bolder and more vivid colors than with RGB alone.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max. 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oF min 60oC/140oF max |
| Lumen Efficiency | 61lm/w(4000K) |
| Color | RGBW |
| Ra | Ra90; Ra80 optional |
| Max. current/LED | 20mA |
| Unit Cut | 100mm/3.94" |
| Waterproof rate | lP20 |
| Warranty | 5years warranty |
For Beamever United States
| CCT | Lumen/ft | Max.Watt (W/ft) | Max. Run Length (ft) |
| R | 39 | 1.46 | 16.40 |
| G | 102 | 1.46 | 16.40 |
| B | 29 | 1.46 | 16.40 |
| W27 | 167 | 1.46 | 16.40 |
| W30 | 176 | 1.46 | 16.40 |
| W35 | 174 | 1.46 | 16.40 |
| W40 | 189 | 1.46 | 16.40 |
| W65 | 193 | 1.46 | 16.40 |
| RGBW40 | 355 | 5.85 | 16.40 |
For Beamever International
| CCT | LM/Mtr | Max.Watt | Max. Run Length |
| R | 128 | 4.8 | 5 |
| G | 336 | 4.8 | 5 |
| B | 95 | 4.8 | 5 |
| W27 | 547 | 4.8 | 5 |
| W30 | 576 | 4.8 | 5 |
| W35 | 570 | 4.8 | 5 |
| W40 | 620 | 4.8 | 5 |
| W65 | 633 | 4.8 | 5 |
| RGBW40 | 1163 | 4.8 | 5 |
Features
Possibilities

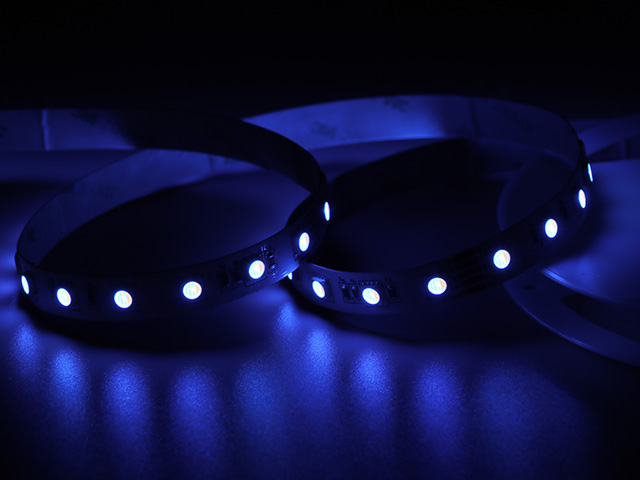

BELA TAPE RGBW lets you to unlock thousands of colors through red-green-blue-white color mixing. Controlled by DMX system & DMX decoder, in order to achieve a lots of vivid lighting effects. Super incredibly of being flexibility and cuttability which offers the greatest freedom of design, e.g., create different shapes, lighting outcome, coloring, or any type of your unique ideas.
Environmental Consideration
As only use the ‘healthy’ material with recyclable, non-toxic, reasonable power-consumption, energy-saving, and super durable of lifespan.
Application
IP20 for many interior places, such as inside of restaurants, airports, shopping malls, business offices, or any other decorative indoor-projects. High CRI Ra90 to present the real-astonished beautiful color, plus the CRI Ra80 is optional to meet your different needs. More importantly, as ONE BIN ONLY principle to maintain the most perfect of color consistency.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape and connectors on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology. And the male and female connectors allow easier connections plug and play.
| Specification Sheet |
| BELA TAPE RGBW SPEC (By ft) |
| BELA TAPE RGBW SPEC (By meter) |
