Can be Directly Connected to Any Standard DMX Controller, No Need Any Decoders

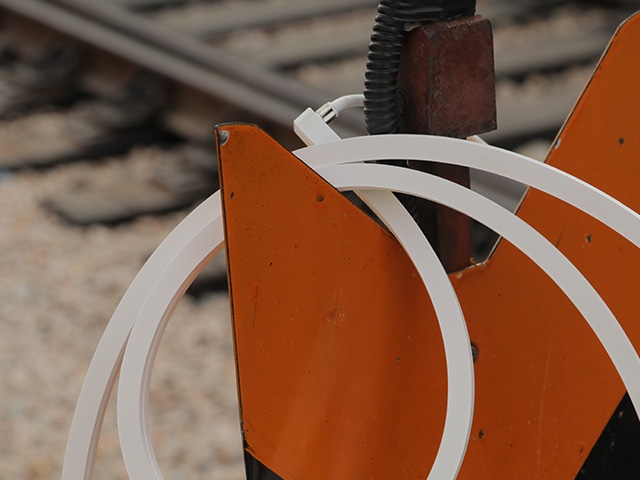

LINIO NEON 1615 TV PIXEL RGBW as the DMX512 control system that to manipulate the interaction within lights, devices, and systems. Adopt voltage DC24V as 23.5V of min, & 24.5V of max as the safe-power-supply. With beautiful top view, vertical bending in radius of 120mm. Plus the dimension of cross section size is 16mm x 15mm / 0.63" x 0.59" (W x H). IP67 and ambient temperature range from -25oC to 55oC. Similar practical-applications for example stage lighting, architectural lighting and decorative lighting. Countless applicable options, with best illuminance providing & professional-grade of optical-designing.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 59.4oC/138.92oF |
| Storage Temperature | -25oC/-13oF min 60oC/140oF |
| Ambient Temperature | Ta min=-25oC/-13oF; Ta max=45oC/113oF max |
| Ta max= 55oC/131oF@14W(single color) | |
| Power (W/m, W/ft) | 14/4.3 |
| Gray Scale | 256 |
| Pixel/M | 8 |
| Control Model | DMX512 |
For Beamever International
| CCT | LM/Mtr | Max. Watt (W/M) | Max. Run Length (M) | Unit Cut (mm) |
| R | 43 | 3.5 | 5 | 125 |
| G | 112 | 3.5 | 5 | 125 |
| B | 26 | 3.5 | 5 | 125 |
| W27 | 136 | 3.5 | 5 | 125 |
| W40 | 141 | 3.5 | 5 | 125 |
| W53 | 140 | 3.5 | 5 | 125 |
| RGBW40 | 293 | 14 | 5 | 125 |
Features
Accessories
There are more options to support your different needs. For example, anodized aluminium channel specific for straight illumination, or the clips for curved or shaped places. And the male and female connectors allow easier connections plug and play. Also with full ranges of drivers provide the best service for you, e.g., apply the dimming and DALI control system for ON/OFF. Or apply the RGBW controller for remote & colorful control. And just in case you need to cut the product, and apply the Silicone glue to fix the end cap & closed end cap.
Installation Benefits
The most important key point here is being seamless, for example, the cable could be perfectly hidden to achieve the seamless lighting-connections with each other. And the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
Technological application
LINIO NEON 1615 TV PIXEL RGBW is a type of pixel neon flex with each RGBW LED pixel (group of 10 LEDs) as individually addressable. Which allows you to set the color for each one independent of every other pixel. And freely to create custom lighting animations & eye-catching dynamic lighting effects like chasing lighting effect, rain lighting effects with DMX 512 controllers.
Practical application

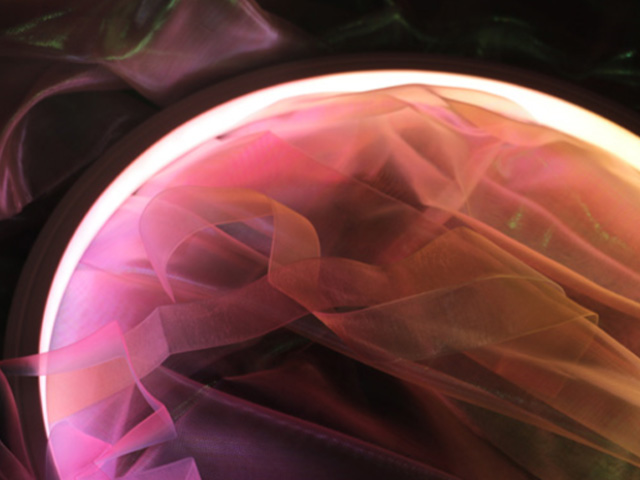

Perfectly works for both external & internal lighting showcases, such as for stage lighting, architectural lighting and decorative lighting. Countless applicable options, with best illuminance providing & professional-grade of optical-designing. 2700K to 5300K as WHT range, and protective features of IP67 waterproof, anti-UV, anti-chemical reaction.
