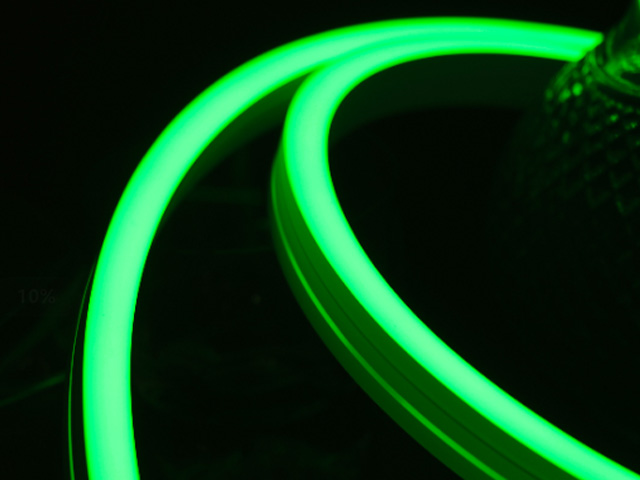

Open up Many Colors Possibilities through Red-Green-Blue Color Mixing
LINIO NEON 1220 SV RGB ensure the safe-power-supply as DC24V specific of 23.5V min, & 24.5V max. Stay ONE BIN ONLY color consistency, and provides homogeneous light effect be display 24/7. Dimension of side view, and the radius of horizontal bending is 120mm / 4.72". Plus the cross section size is 12mm x 20mm /0.47" x 0.79" (W x H). However, the working temperature from -25oC to +50oC, with IP67 as the important feature of solving outside & inside lighting-decorations. For example, commercial business offices, residential areas as personal mansions, or architectural decorations.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 59.4oC/138.92oF |
| Storage Temperature | -25oC/-13oF min, 60oC/140oF max |
| Ambient Temperature | Ta min=-25oC/-13oF; Ta max=35oC/95oF@11W |
Ta max=50oC/122oF@3.75W (single color ) | |
| Power(W/m; W/ft) | 11W/m ; 3.35W/ft |
| Efficacy (lm/w) | 18lm/W@RGB 3.35W |
For Beamever United States
| CCT | LM/ft | Max. Watt (W/ft) | Max. Run Length (ft) | Unit Cut (in) |
| R | 13 | 1.13 | 42.64 | 4.92 |
| G | 43 | 1.13 | 42.64 | 4.92 |
| B | 7 | 1.13 | 42.64 | 4.92 |
| RGB | 61 | 3.35 | 42.64 | 4.92 |
For Beamever International
| CCT | LM/Mtr | Max. Watt (W/M) | Max. Run Length (M) | Unit Cut (mm) |
| R | 41 | 3.7 | 13 | 62.5 |
| G | 140 | 3.7 | 13 | 62.5 |
| B | 23 | 3.7 | 13 | 62.5 |
| RGB | 200 | 11 | 13 | 62.5 |
Features
Installation Benefits
With benefits of easy cut and reconnected at project sites. And the custom length are available as well. Plus the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
Environmental Consideration
Includes can handle very harsh-conditions, such as wet, dry, or hot. Working temperature from -25oC to +50oC. And all the materials are healthy which means they are non-toxic, recyclable, and smells good.
Accessories
There are more options to support your different needs. For example, anodized aluminium channel specific for straight illumination, or the clips for curved or shaped places. And the male and female connectors allow easier connections plug and play. Also with full ranges of drivers provide the best service for you, e.g., apply the dimming and DALI control system for ON/OFF. Or apply the RGB controller for remote & colorful control. And just in case you need to cut the product, and apply the Silicone glue to fix the end cap & closed end cap.
Practical Applications
Offer millions of colors using gorgeous red-green-blue color mixing. Plus very important features of being easy to be cut as standard, very flexible, and can be reconnected at project sites.
