LINIO NEON 360
Optical-Structure Designing with 360°Lighting-Angles
LINIO NEON 360o as voltage of DC24V with 23.5V as min, & 24.5V as max. Section size with radius 100mm/3.93". Ambient temperature min -20oC to low output as +55oC or STD output as 45oC. And
CRI Ra90, ONE BIN ONLY of color-consistency, and 3-Step of MacAdam. IP65 waterproof makes it as the professional of indoor decorative-solution, e.g., inside of the coffee shops, fancy restaurants, business offices, or some fancy places in illuminance needs. Generally, LINIO NEON 360o as super unique of optical-structure designing, with 360°lighting-angles, more perfectly to offer luminous uniformity without any shadow.

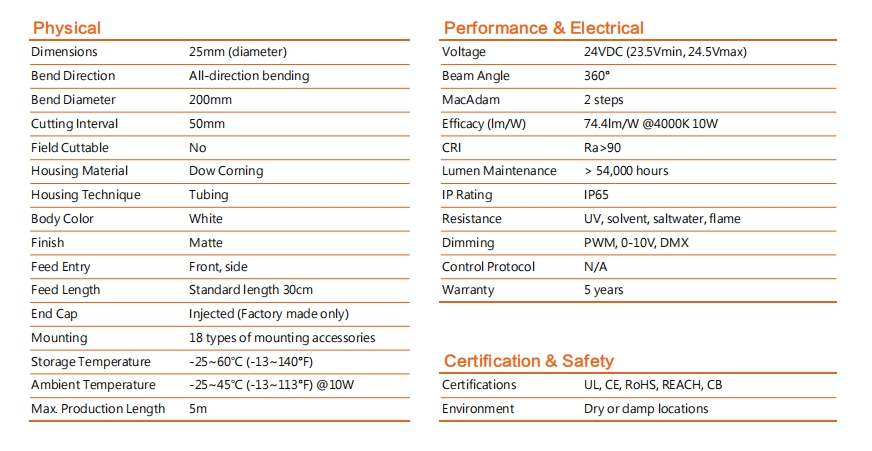

Voltage | DC24V(23.5Vmin24.5Vmax) |
LED PIN Temperature | Max 65oC/149oF |
Storage Temperature | -25oC/-13oF min, 60oC/144oF max |
Ambient Temperature | Ta min=-20oC/-4oF, Ta max (Table below) |
CRI | Ra90 |
Unit Cut | 50mm |

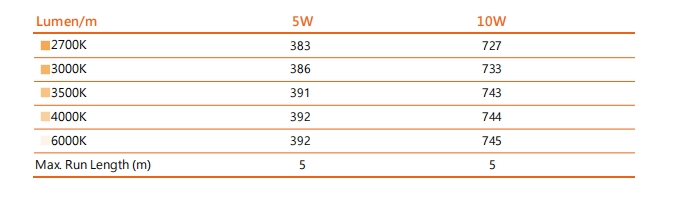

CCT | 5W | 10W |
2700K | 364 | 727 |
3000K | 362 | 733 |
3500K | 365 | 743 |
4000K | 366 | 744 |
6000K | 365 | 745 |
Max. Run Length (M) | 5M | 5M |
Features
Design
Very simple, exquisite and pure color, and fashionable appearance-designing. Will perfectly present the high-end & designable appreaciation during different light-decorations.
Protection
IP65 waterproof makes it as the professional of indoor decorative-solution. Plus UV resistant, chemical resistant, and flame retardant. Which can satisfy your pursuit of both beauty and function.
Applications
Include retail shops, exhibition-hall, aesthetic art-lighting, personal house, or other indoor projects. Ideal for amazing different shape lighting applications. Ambient temperature min -20oC to low output as +55oC or STD output as 45oC.
Accessories
PC profile for steadying as straight illumination. PC mounting clips for curved or shaped applications. Hanging wire helps to adjust the light angle and position. Front and rear end cap for hanging installation.
Specification Sheet |
Installation Guide |
IES |
LINIO NEON 360°927.IES |
LINIO NEON 360° 930.IES |
Brochure |
LINIO NEON 360 Brochure |
