Professional illuminated as the Internal Lighting Projects

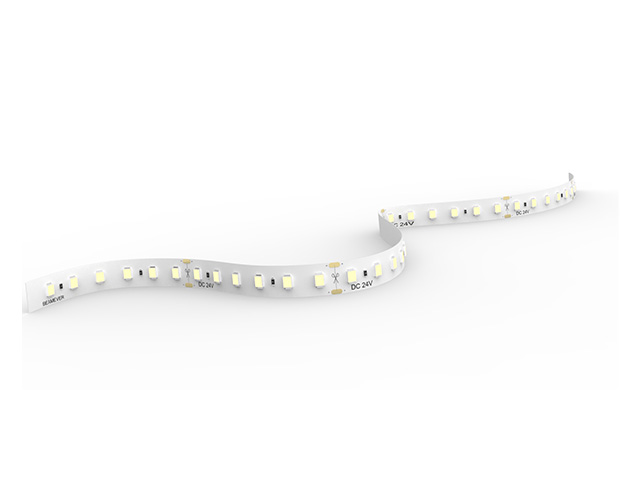

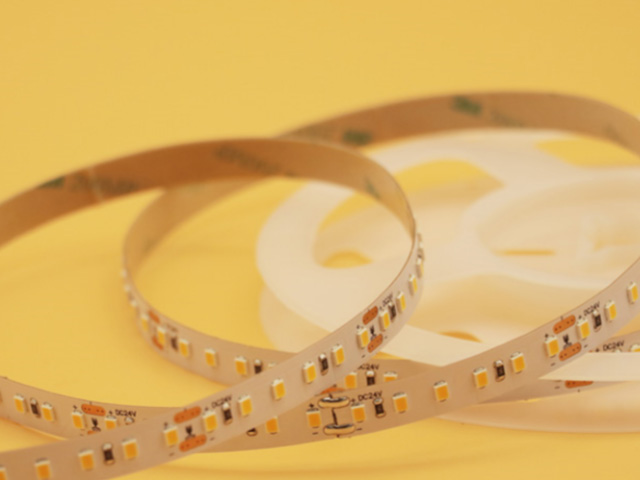

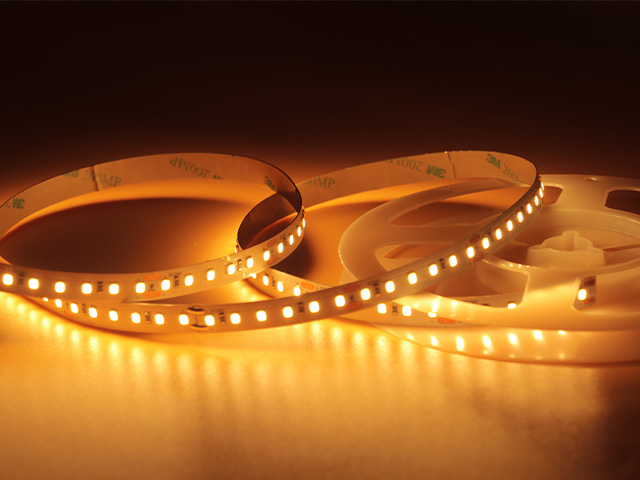

AERO TAPE with 3-Step and in ONE BIN ONLY maintain the best color consistency. And 120 high quality LEDs per meter, and 10 mm of width. CCT range from 2700K to 6500K. And IP20 waterproof makes it turns to professional for internal lighting projects. For example, restaurants, personal houses, offices, etc. Optional as high CRI90 to present real color, CRI80 is optional to satisfy needs. Flexible, cuttable and dimmable LED tape. Leaves enough-freedom of seeking your own lighting ideas. And always presents very impressive of eye-catching effect. Also could be very precisely and professionally to highlight the specific areas as requirements.
| Voltage | DC24V(23.5Vmin &24.5Vmax) |
| LED PIN Teperature | Max. 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oF min & 60oC/140oF |
| Lumen Efficiency | 96lm/w(4000K) |
| SDCM | 3 (2700K, 3000K, 4000K) |
| Ra | Ra90; Ra80 optional |
| Max. curret/LED | 50mA |
| Unit Cut | 50mm/1.97'' |
| Waterproof Rate | IP20 |
| Warranty | 5 Years |
For Beamever United States
| LM/FT | 1.46W | 2.93W | 4.39W | 5.85W | 7.32W |
| 2700K | 137 | 274 | 402 | 566 | 671 |
| 3000K | 142 | 280 | 422 | 579 | 698 |
| 3500K | 143 | 287 | 424 | 580 | 704 |
| 4000K | 147 | 294 | 442 | 601 | 726 |
| 6500K | 155 | 296 | 444 | 605 | 716 |
| Max. Run Length (FT) | 16.4FT | 16.4FT | 16.4FT | 16.4FT | 16.4FT |
For Beamever International
| LM/M | 4.8W | 9.6W | 14.4W | 19.2W | 24W |
| 2700K | 519 | 920 | 1316 | 1718 | 1956 |
| 3000K | 505 | 891 | 1300 | 1649 | 1863 |
| 3500K | 515 | 903 | 1319 | 1583 | 1924 |
| 4000K | 540 | 944 | 1321 | 1772 | 2004 |
| 6500K | 547 | 947 | 1346 | 1820 | 2046 |
| Max. Run Length (M) | 5M | 5M | 5M | 5M | 5M |
Features
Flexibility
With features of being cuttable, dimmable, designable, and adjustable. To make more possibilities for your different projects. CRI Ra90 and CRI Ra80 as optional for meeting different needs.
Accessories
Connector for strip to strip & strip to cable connection, IP20 which to steady and adjust the interactions between light to light. Male and Female (DC) connector, IP20 & IP44 which to ensure the safe of power applying. VHB 3M adhesive tape also helps the light setting. And PSU 24V/150W IP67, non-dimmable & 3 in 1 dimming function, white, 100-305V supply as the illuminance adjustment.
Application
IP20 waterproof makes AERO TAPE as specific for internal projects, e.g., business offices, personal houses, restaurants, etc. Very easy of installation regarding of pre-wired LED tape & simple and quick plug-and-play system. 24V with 23.5V min & 24.5V max.
Environment
Recyclable, non-toxic, green of power-consumption, and energy-saving. Plus heat-dissipation system helps to maintain longer lifespan.
| Specification Sheet |
