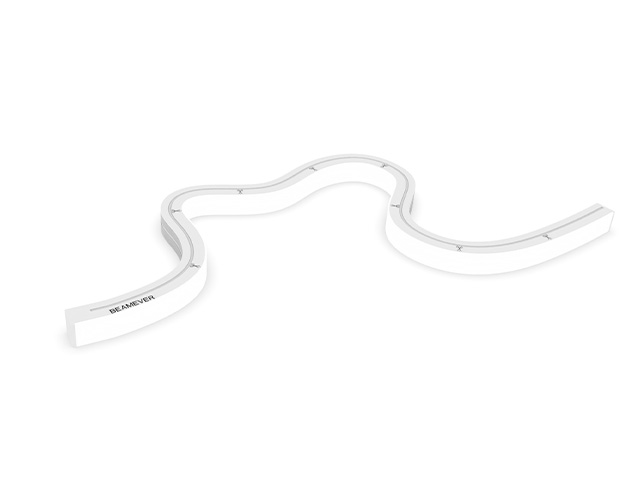

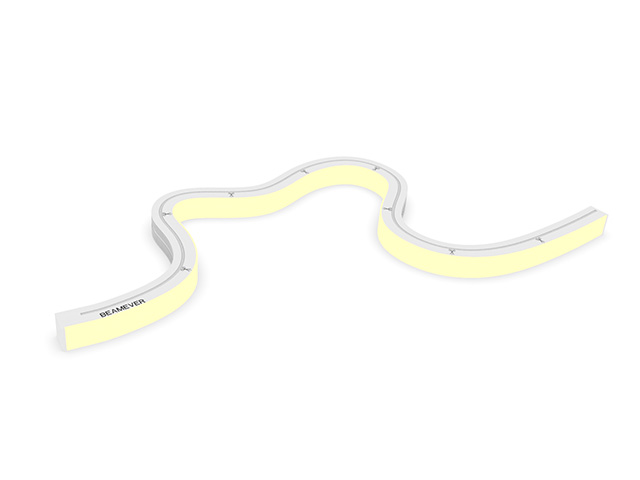

Vertical Bending, Top View, and Frees You to Express Lighting-Imagination
LINIO NEON 1615 TV as vertical bending with radius of 150mm / 5.9". Adopt DC24V of 23.5 min & 24.5 max. As the standard of 30M/reel maximum, and Max. Run length refers to single side feed in serial connection. ONE BIN ONLY maintains high color-consistency. IP67 waterproof makes LINIO NEON 1615 TV as the best solution for outdoor and indoor lighting-decoration, such as lighting for architectural, façade, landscape, etc.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oF |
| Storage Temperature | F min=-25oC/-13o, F max=60oC/140oF |
| Min. Ambient Temperature (Ta min) | -25oC/-13oF |
| Max. Ambient Temperature (Ta max) | 55oC/131oF@5W, 45oC/113oF@10W, 35oC/95oF@15W |
| Power (W/m W/ft) | 5/1.5, 10/3.1, 15/4.6 |
| CRI | Ra93 |
| Unit Cut | 50mm/1.97'' |
For Beamever United States
| LUMEN/FT | 1.52W | 3.05W | 4.57W |
| 2700K | 69 | 179 | 219 |
| 3000K | 72 | 185 | 232 |
| 3500K | 73 | 182 | 238 |
| 4000K | 71 | 175 | 229 |
| 6500K | 72 | 177 | 234 |
| Max. Run Length (FT) | 88.56FT | 55.76FT | 45.92FT |
For Beamever International
| LM/M | 5W | 10W | 15W |
| 2700K | 226 | 587 | 718 |
| 3000K | 236 | 607 | 762 |
| 3500K | 240 | 596 | 782 |
| 4000K | 232 | 575 | 752 |
| 6500K | 236 | 580 | 767 |
| Max. Run Length (M) | 27M | 17M | 14M |
Features
Installation Benefits
The single side feed of Max. Run length is up to 27 meters. With benefits of easy cut and reconnected at project sites. And the custom length are available as well. Plus the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
Accessories
There are more options to support your different needs. For example, anodized aluminium channel specific for straight illumination, or the clips for curved or shaped places. And the male and female connectors allow easier connections plug and play. Also with full ranges of drivers provide the best service for you, e.g., apply the dimming and DALI control system for ON/OFF. And just in case you need to cut the product, and apply the Silicone glue to fix the end cap & closed end cap.
Protection
IP67 waterproof, anti-UV, anti-solvents, and all the materials applied into product which all of them are green & healthy, totally environmental consideration.
Illuminance
Top view, CRI of Ra93, with vertical bending of 150mm/5.9" radius. Can fit different angles or shapes of lighting, e.g., tracing straight, curved, round. ONE BIN ONLY of high color consistency. Extremely homogeneous and flawless lighting.
Option
Applicable for both exterior and interior projects. Customized options of being flexible, cuttable, freely of lighting inspiration & shaped-designing. Custom length are available which depends on project’s needs. CCT range from 2700K to 6500K.
