Perfectly Create a Stunning Visual Display

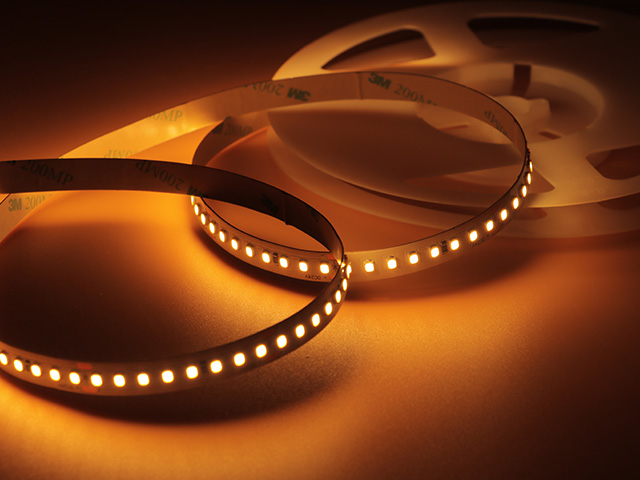

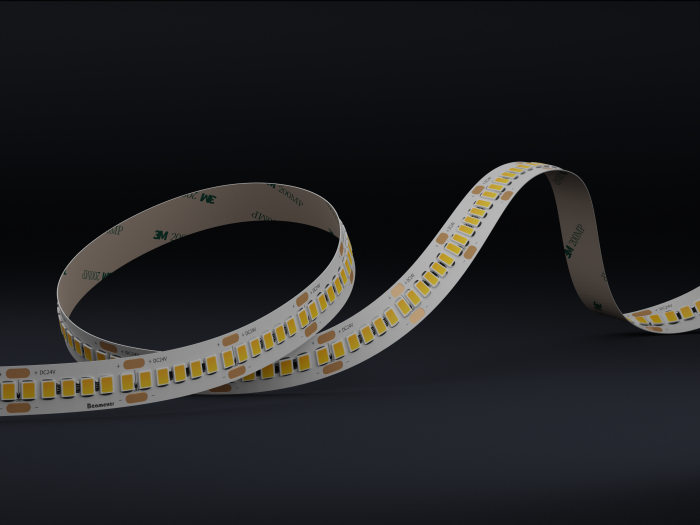

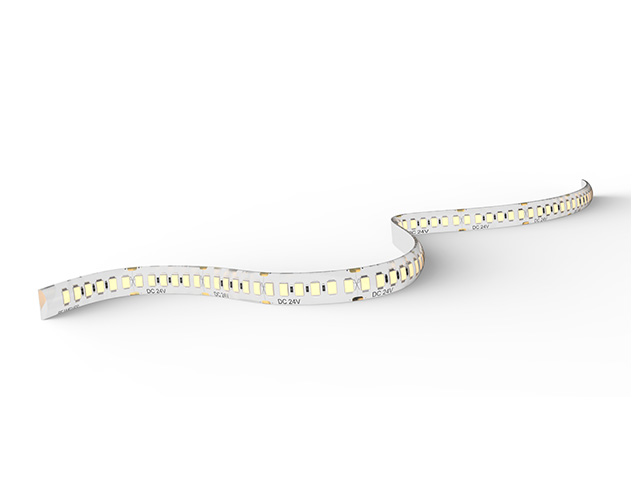

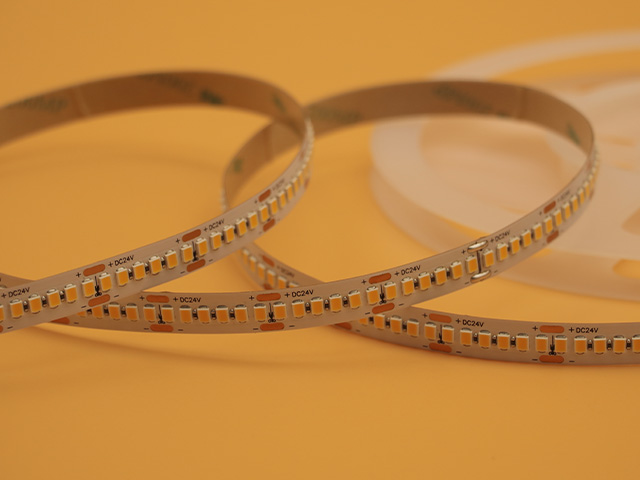

AERO TAPE HD as the safe power range from DC24V of 23.5V min & 24.5V max. 3 Steps of ONE BIN ONLY maintain the high color-consistency. With the dimension of 240 high quality 2835 LEDs per meter and a width of 10mm. As the typical lumen efficiency is 100 lm/W@4000K. IP20 makes AERP TAPE HD as very professional inside-lighting. For instance, kitchens, exhibition halls, offices, or other illuminated-need places. CCT range from 2700K to 6500K, e.g., natural white, warm, white, cold white, etc. Generally, it with super high density of LEDs layout, plus provide very exquisite lighting outcome.
| Voltage | DC24V(23.5Vmin &24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oF min & 60oC/140oF |
| Lumen Efficiency | 100lm/w (4000K) |
| SDCM | 3 (2700K, 3000K, 4000K) |
| Ra | Ra90; Ra80 optional |
| Max. current/LED | 25mA |
| Unit Cut | 25mm/0.98'' |
| Waterproof Rate | IP20 |
| Warranty | 5 Years |
For Beamever United States
| LM/FT | 1.46W | 2.93W | 4.39W | 5.85W | 7.32W |
| 2700K | 138 | 273 | 405 | 564 | 672 |
| 3000K | 143 | 283 | 423 | 573 | 695 |
| 3500K | 144 | 284 | 424 | 583 | 698 |
| 4000K | 146 | 295 | 441 | 595 | 726 |
| 6500K | 154 | 296 | 444 | 605 | 720 |
| Max. Run Length (FT) | 16.4FT | 16.4FT | 16.4FT | 16.4FT | 16.4FT |
For Beamever International
| LM/M | 4.8W | 9.6W | 14.4W | 19.2W | 24W |
| 2700K | 499 | 986 | 1421 | 1633 | 2192 |
| 3000K | 511 | 993 | 1430 | 1633 | 2126 |
| 3500K | 504 | 1019 | 1493 | 1737 | 2215 |
| 4000K | 522 | 1087 | 1541 | 1795 | 2322 |
| 6500K | 535 | 1091 | 1554 | 1828 | 2329 |
| Max. Run Length (M) | 5M | 5M | 5M | 5M | 5M |
Features
Illuminance
Optional CRI Ra90 and Ra80 available to satisfy various projects’ needs. Presents very homogeneous light effect 24/7 with dust-free & dot-free. Being cuttable & dimmable, it helps the project turns more designable.
Protection
Coordinated with multiple systems, e.g., heating-dissipation system. Super durable lifespan caused the imported advanced silicone material.
Application
Perfectly works for internal projects, e.g., business offices, residential apartments, shopping malls, etc. With super beautiful & classic-design of tape appearance which atmospherically decorate the places you want.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape and connectors on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology.
