Contributed by High-end Material, Professional System, and Optical Design
ALTA TAPE perfectly display the illuminance of being flawless and exquisite. Apply with safe-power supplying of DC24V detailed with 23.5V min to 24.5V max. CRI Ra90 to present the real color, and CRI Ra80 is optional to satisfy needs. CCT WHT range from 2700K to 6500K. Furthermore, 3-Step of ONE BIN ONLY for keeping the color-consistency. And IP20 with the most important feature for indoor projects, such as kitchen, bedroom, living room, or other public places with sheltered-covers. Totally, dust-free, owns heat-dissipation, and as dimmable LED tape.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 60.9oC/141.6oF |
| Storage Temperature | -25oC/-13oFmin 60oC/140oF |
| Lumen Efficiency | 150lm/w(4000K) |
| SDCM | 3 (2700K, 3000K, 4000K) |
| Ra | Ra90; Ra80 optional |
| Max. current/LED | 43.7mA |
| Unit Cut | 50mm/1.97'' |
| Waterproof Rate | IP20 |
| Warranty | 5Years |
For Beamever United States
| LM/FT | 1.46W | 2.93W | 4.39W | 5.85W | 7.32W |
| 2000K | 199 | 421 | 609 | 852 | 914 |
| 3000K | 204 | 424 | 612 | 859 | 917 |
| 3500K | 210 | 433 | 642 | 869 | 956 |
| 4000K | 220 | 439 | 661 | 881 | 963 |
| 6500K | 223 | 450 | 668 | 885 | 980 |
| Max. Run Length (FT) | 16.4FT | 16.4FT | 16.4FT | 16.4FT | 16.4FT |
For Beamever International
| LM/M | 4.8W | 9.6W | 14.4W | 19.2W | 21W |
| 2000K | 684 | 1282 | 2106 | 2754 | 2754 |
| 3000K | 723 | 1367 | 2195 | 2195 | 2779 |
| 3500K | 694 | 1376 | 2139 | 2139 | 2691 |
| 4000K | 733 | 1526 | 2202 | 2202 | 2987 |
| 6500K | 819 | 1575 | 2482 | 2482 | 3183 |
| Max. Run Length (M) | 5M | 5M | 5M | 5M | 5M |
Features
Illuminance

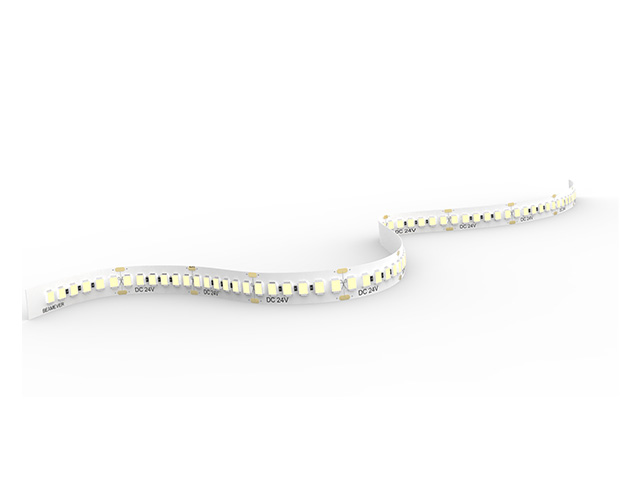

With 160 high quality LEDS per meter and a width of 10mm. And typically lumen efficiency as 150 lm/W@4000K. Perfectly create a stunning visual display easily and lasting very longer.
Environmental Consideration
Only apply the healthy material with features of recyclable and non-toxic. To achieve the reasonable power-consumption, and in the meanwhile, obtain the goal of energy-saving, and being super durable of lifespan.
Application
IP20 waterproof works for all kind of internal projects, such as business offices, corridors, and hotels, etc. With super flexible, cuttable, and dimmable LED tape to support installation. For instance, the pre-wired LED tape with features of simple and quick manipulation.
Accessories
There are more options to support your different needs. For instance, VHB 3M adhesive tape and connectors on purposes of steadying light to light, and ensure the perfect of illuminance. ON/OFF system need to apply the dimming & DALI technology. And the male and female connectors allow easier connections plug and play.
| Specification Sheet |
| ALTA TAPE SPEC (by ft) |
