LINIO NEON 1615 TV TW
With Wonderful Features of Homogeneous Illuminance, Extremely Durable and Flexible

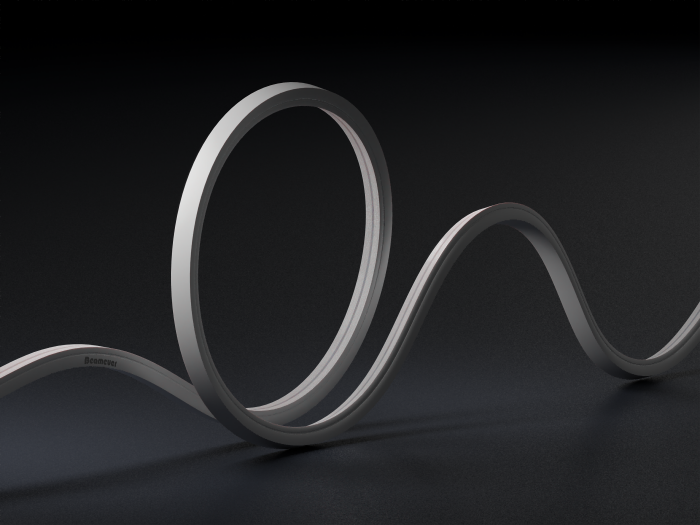

LINIO NEON 1212 TV TW as top view, and vertical bending with radius of 240mm / 9.44". And its cross section size 12mm x 12mm / 0.47" x 0.47" (W x H). Ambient Temperature -25oC to +45oC. DC24V of 23.5V min & 24.5 max to maintain a safe-power-supplying. White adjustable from very warm white 2700K to cool white 5500K. Perfectly works for external and internal lighting projects, for example, shopping malls, theme parks, bars, exhibition halls, etc. UV resistant, solvents resistant, and durable-quality of material.
Voltage | DC24V(23.5Vmin 24.5Vmax) |
LED PIN Temperature | Max 65oC/149oF |
Storage Temperature | -25oC/-13oF min 60oC/140oF max |
Ambient Temperature | Ta min=-25oC/-13oF, Ta max= 35oC/95oF@15W |
Ta max=45oC/113oF@7.5W(single color) | |
Power (W/m; W/ft) | 15W/M; 4.57W/FT |
Efficacy (lm/W) @5300k | 68 |
CRI | 80 |
For Beamever United States
CCT | LM/FT | Max. Watt (W/FT) | Max. Run Length (FT) | Unit Cut(inch) |
2700K | 157 | 2.29 | 16.4FT | 1.97 |
5300K | 156 | 2.29 | 16.4FT | 1.97 |
2700K+5300K | 312 | 4.57 | 16.4FT | 1.97 |
For Beamever International
CCT | LM/Mtr | Max. Watt (W/M) | Max. Run Length (M) | Unit Cut (MM) |
2700K | 514 | 7.5 | 5M | 50 |
5300K | 511 | 7.5 | 5M | 50 |
2700K+5300K | 1024 | 15 | 5M | 50 |
Features
Installation Benefits
With benefits of easy cut and reconnected at project sites. And the custom length are available as well. Plus the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
Accessories
Multiple selections for your different expectations. For instance, anodized aluminium channel specific for straight illumination, or the clips for curved and shaped places. And the male & female connectors allow you easier to connect plug & play. Also with full ranges of drivers to provide the best service for you, e.g., to apply the dimming or DALI control system for ON/OFF. Or to adopt the tunable WHT controller for LINIO NEON 1615 TV TW, the tunable feature. Lastly, just in case you need to cut the product, then you could apply the Silicone glue to fix the end cap & closed end cap.
Illumination
As the perfect of homogeneous lighting, CRI of Ra80, ONE BIN ONLY of color-consistency, and the double-white of warm & cool from 2700 K & 5300K to fit with different atmosphere and color-requirements. IP67 waterproof, UV resistant, solvents resistant, super durable-quality of materials.
Application
As a perfect linear solution for various lighting-purposes, such as architecture, wall, or landscape. For both exterior and interior areas. Creative & amazing features of flexible and cuttable which frees you to do any unique lighting-inspiration, and to create all kinds of shaped lighting with ease. Plus, performance of extremely durable & dependable thanks the high-top of material.
