Offer Millions of Colors Using Red-Green-Blue Color-mixing

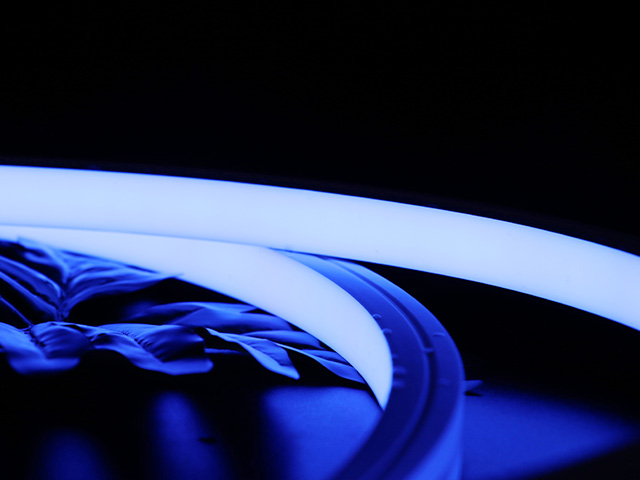

LINIO NEON 1615 TV RGB top view, with vertical bending in radius of 150mm / 5.9". And the cross section size is 16mm x 15mm / 0.63" x 0.59" (W x H). Voltage adopts DC24V (23.5Vmin, 24.5Vmax). IP67 protection allows it works for both external & internal projects, for instance those practical areas including commercial (e.g., shopping mall), residential (e.g., hotel), architectural (e.g., exhibition-hall), or other types (e.g., restaurant, airport, or office) of decorative-purposes. More importantly, it has extreme durability and flexibility features thanks to high-end performance materials.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 59.4oC/138.92oF |
| Storage Temperature | -25oC/-13oF min, 60oC/140oF max |
| Ambient Temperature | Ta min=-25oC/-13oF; Ta max=35oC/95oF@11W |
| Ta max=50oC/122oF@3.75W (single color) | |
| Power (W/m W/ft) | 11W/M /3.35W/FT |
| Efficacy (lm/W) | 29.2 |
For Beamever United States
| CCT | LUMEN/FT | Max. Watt (W/FT) | Max. Run Length (FT) | Unit Cut (inch) |
| R | 17 | 1.13 | 42.64FT | 4.92 |
| G | 49 | 1.13 | 42.64FT | 4.92 |
| B | 11 | 1.13 | 42.64FT | 4.92 |
| RGB | 80 | 3.35 | 42.64FT | 4.92 |
For Beamever International
| CCT | LM/Mtr | Max. Watt (W/M) | Max. Run Length (M) | Unit Cut (mm) |
| R | 56 | 3.7 | 13 | 125 |
| G | 160 | 3.7 | 13 | 125 |
| B | 36 | 3.7 | 13 | 125 |
| RGB | 264 | 11 | 13 | 125 |
Features
Installation Benefits
The single side feed of Max. Run length is up to 13 meters. With benefits of easy cut and reconnected at project sites. And the custom length are available as well. Plus the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
Accessories
There are more options to support your different needs. For example, anodized aluminium channel specific for straight illumination, or the clips for curved or shaped places. And the male and female connectors allow easier connections plug and play. Also with full ranges of drivers provide the best service for you, e.g., apply the dimming and DALI control system for ON/OFF. Or apply the RGB controller for remote & colorful control. And just in case you need to cut the product, and apply the Silicone glue to fix the end cap & closed end cap.
Practical Application
Working environment which can deal with very well of harsh-conditions, e.g., dry, wet, or suitable working range of temperature from -25℃ to 50℃. Outside projects such as garden-decorations, outside of shopping malls, etc. Inside projects such as inside of restaurants, airport, or etc. Lighting-effect with extremely impressive coloring-outcome by offering millions of colors via red-green-blue perfectly of color-mixing, ONE BIN ONLY of high color-consistency. Full protections: IP67 waterproof, UV resistant, solvents resistant.
Options
Customized options regarding of custom length are available, so flexible & cuttable which leaves the enough-space of being creative and seeking light-inspiration freely, tons of coloring-choices, etc. To meet various lighting-standards.
