Let You to Create Bolder and More Vivid Colors than with RGB Alone

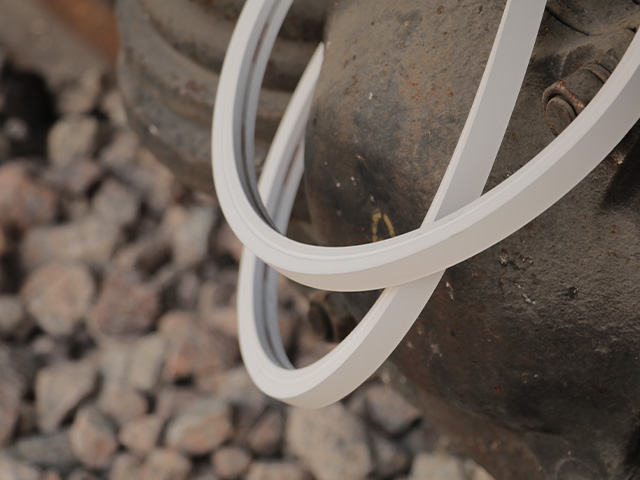

LINIO NEON 1615 TV RGBW adopt DC24V with 23.5V as min, and 24.5V as max. The dimension of cross section size is 16mm x 15mm / 0.63" x 0.59" (W x H). Plus as the top view, vertical bending with radius of 150mm / 5.9". IP67 waterproof, UV resistant, solvents resistant, and ambient temperature range from -25oC to 55oC. Practical places could be those leisure & entertainment venues such as nightclubs, shopping malls, or theme parks. Commercial of business-offices, luxurious architectures such as fancy car exhibition-halls, or meeting-rooms. And residential areas such as within the big mansions, apartments of downtown center, or indoor & outdoor decoration of hotels.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 59.4oC/138.92oF |
| Storage Temperature | -25oC/-13oF min 60oC/140oF max |
| Ambient Temperature | Ta min=-25oC/-13oF; Ta max=35oC/95oF@15W |
| Ta max=55oC/131oF@3.75W(single color) | |
| Power (W/m, W/ft) | 15W/M /4.6W/FT |
| Efficacy (lm/w) | 36 |
For Beamever United States
| CCT | LUMEN/FT | Max. Watt (W/FT) | Max. Run Length(FT) | Unit Cut (inch) |
| R | 19 | 1.14 | 32.8FT | 4.92 |
| G | 59 | 1.14 | 32.8FT | 4.92 |
| B | 17 | 1.14 | 32.8FT | 4.92 |
| W27 | 63 | 1.14 | 32.8FT | 4.92 |
| W40 | 67 | 1.14 | 32.8FT | 4.92 |
| W53 | 63 | 1.14 | 32.8FT | 4.92 |
| RGBW40 | 162 | 4.57 | 32.8FT | 4.92 |
For Beamever Middle East
| CCT | LM/Mtr | Max. Watt (W/M) | Max. Run Length (M) | Unit Cut (MM) |
| R | 63 | 3.75 | 10 | 125 |
| G | 192 | 3.75 | 10 | 125 |
| B | 57 | 3.75 | 10 | 125 |
| W27 | 205 | 3.75 | 10 | 125 |
| W40 | 219 | 3.75 | 10 | 125 |
| W53 | 208 | 3.75 | 10 | 125 |
| RGBW40 | 531 | 15 | 10 | 125 |
Features
Application
Works for many places, such as nightclubs, hotels, theme parks, schools, or personal houses. It is incredible of being flexibility and cuttability which offers great freedom of design, e.g., to make different combination of coloring, or creative of decorative-shapes. Overall, to provide precise and professional-level of homogeneous illuminance. With extreme durable and dependable cause the high-end of material-supporting, plus the excellent-working of DMX controlling system.
Accessories
There are more options to support your different needs. For example, anodized aluminium channel specific for straight illumination, or the clips for curved or shaped places. And the male and female connectors allow easier connections plug and play. Also with full ranges of drivers provide the best service for you, e.g., apply the dimming and DALI control system for ON/OFF. Or apply the RGBW controller for remote & colorful control. And just in case you need to cut the product, and apply the Silicone glue to fix the end cap & closed end cap.
Installation Benefits
With benefits of easy cut and reconnected at project sites. And the custom length are available as well. Plus the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
Illuminance

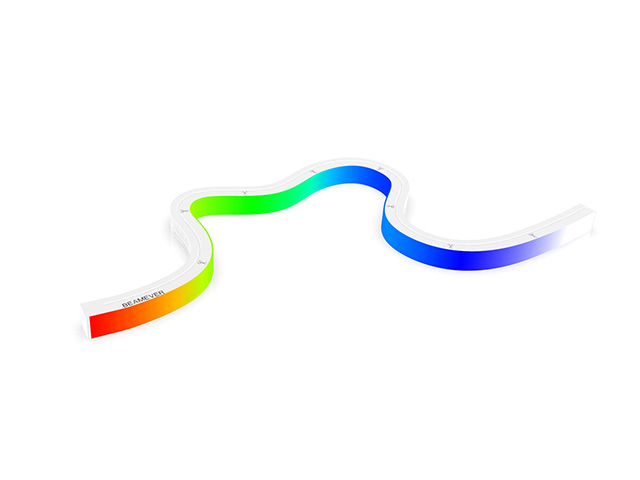

As provide the flawless and exquisite lighting-outcome; ONE BIN ONLY to maintain color-consistency; RGB+WHT@2700K to 5300K. LINIO NEON 1615 TV RGBW lets you unlock thousands of color through redgreen-blue-white color mixing. Let you to create bolder and more vivid colors than with RGB alone.
