Bring Homogeneous Lighting to Your Both Interior and Exterior Projects
LINIO NEON 1220 SV TW adopt the safe-power-supplying within DC24V as 23.5V of the min, & 24.5V of the max. Dimension pf cross section size with 12mm x 20mm /0.47" x 0.79" (W x H), plus the radius of horizontal bending is 120mm / 4.72". LINIO NEON 1220 SV TW could be very good at to deal with various hash-environments, and perfectly work from -25oC to +45oC. With IP67 waterproof which perfect solve the indoor and outdoor lighting-decorations. Such as works a tracing straight, curved, or as the round contours with even lighting.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max 59.4oC/138.92oF |
| Storage Temperature | -25oC/-13oF min, 60oC/140oF max |
| Ambient Temperature | Ta min=-25oC/-13oF; Ta max=35oC/95oF@15W |
| Ta max=45oC/113oF@7.5W (single color) | |
| Power (W/m, W/ft) | 15W/m ; 4.57W/ft |
| Efficacy (lm/W) | 35lm/W@2700K+5300K 4.57W |
| CRI | 80 |
For Beamever United States
| CCT | LM/ft | Max. Watt (W/ft) | Max. Run Length (ft) | Unit Cut (in) |
| 2700K | 82 | 2.29 | 16.4 | 1.97 |
| 5300K | 82 | 2.29 | 16.4 | 1.97 |
| 2700K+5300K | 159 | 4.57 | 16.4 | 1.97 |
For Beamever International
| CCT | LM/Mtr | Max. Watt (w/m) | Max. Run Length (m) | Unit Cut (mm) |
| 2700K | 270 | 7.5 | 5 | 50 |
| 5300K | 270 | 7.5 | 5 | 50 |
| 2700K+5300K | 523 | 15 | 5 | 50 |
Features
Options
Tunable white as very warm white 2700K to cool white 5300K in one neon flex, you can easily to create different beautiful atmospheres as needed. Include IP67 waterproof, anti-chemical reaction, dust & dot-free, no breakage, no smelling, no chemical reaction, and easy-clean.
Accessories
There are more options to support your different needs. For example, anodized aluminium channel specific for straight illumination, or the clips for curved or shaped places. And the male and female connectors allow easier connections plug and play. Also with full ranges of drivers provide the best service for you, e.g., apply the dimming and DALI control system for ON/OFF. Or apply the Tunable WHT controller for remote control. And just in case you need to cut the product, and apply the Silicone glue to fix the end cap & closed end cap.
Practical Applications

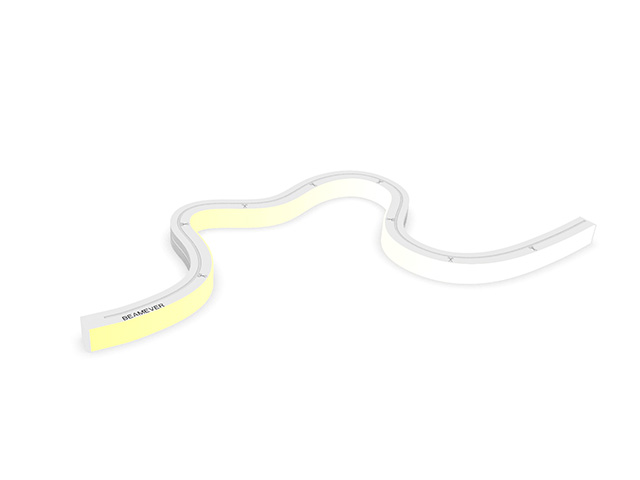

Including interior and exterior projects. Be effectively & elegantly to highlight certain areas, no matter what type of angles or shapes. E.g., a tracing straight, curved, or as the round contours with even lighting. Displaying very stunning lighting outcome, with CRI Ra80, and ONE BIN ONLY principle to ensure the high color-consistency.
Installation Benefits
With benefits of easy cut and reconnected at project sites. And the custom length are available as well. Plus the seamless cable entry with different directions makes perfect lighting line without any interruption. And here we have three approaches regarding front cable entry, side cable entry, and bottom cable entry.
