Great Features of Flexible, Cuttable, and Custom Length as Optional

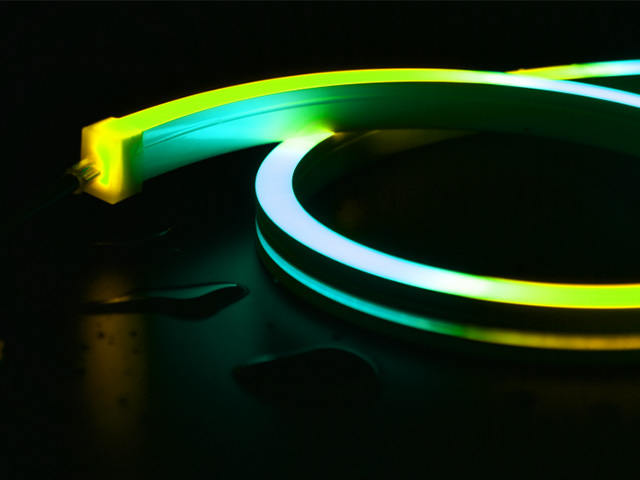

LINIO NEON 1220 SV PIXEL RGBW contributed as very exquisite side view emitting, horizontal bending with radius of 120mm / 4.72". And the cross section size 12mm x 20mm /0.47" x 0.79" (W x H). And the power-supply range as DC24V, range from 23.5V min to 24.5V max. IP67 waterproof, WHT range from 2700K to 5300K, plus working temperature from -25oC to +55oC. Furthermore, DMX512 control system to operate the devices, lights, and systems maintaining a very stable and dependable performance. Plus to offer very amazing effects, such as chasing, rain, or coloring-changes of various effects. Very eye-catching, dynamic, and extremely magnificent.
| Voltage | DC24V(23.5Vmin 24.5Vmax) |
| LED PIN Temperature | Max59.4oC/138.92oF |
| Storage Temperarture | -25oC/-13oF min, 60oC/140oF max |
| Ambient Temperature | Ta min=-25oC/-13oF; Ta max=45oC/113oF@15W |
| Ta max=55oC/131oF@3.5W(single color) | |
| Power (W/m, W/ft) | 14/4.27 |
| Gray Scale | 256 |
| Pixel | 8/M ; 2.44/ft |
| Control Mode | DMX512 |
For Beamever United States
| CCT | LM/ft | Max. Watt (W/ft) | Max. Run Length (ft) | Unit Cut (in) |
| R | 7 | 1.07 | 16.40 | 4.92 |
| G | 21 | 1.07 | 16.40 | 4.92 |
| B | 6 | 1.07 | 16.40 | 4.92 |
| W27 | 36 | 1.07 | 16.40 | 4.92 |
| W40 | 39 | 1.07 | 16.40 | 4.92 |
| W53 | 37 | 1.07 | 16.40 | 4.92 |
| RGBW40 | 73 | 4.27 | 16.40 | 4.92 |
For Beamever International
| CCT | LM/Mtr | Max. Watt (W/M) | Max. Run Length (M) | Unit Cut (mm) |
| R | 23 | 3.5 | 5 | 125 |
| G | 70 | 3.5 | 5 | 125 |
| B | 19 | 3.5 | 5 | 125 |
| W27 | 118 | 3.5 | 5 | 125 |
| W40 | 129 | 3.5 | 5 | 125 |
| W53 | 120 | 3.5 | 5 | 125 |
| RGBW40 | 241 | 14 | 5 | 125 |
Features
Technological application
As within the pixel neon flex, each RGBW LED pixel WITH group of 10 LEDs is individually addressable. Then, you can set up the color for each one independent of every other pixel.
DMX512 ontrol system
To operate the devices, lights, and systems maintaining a very stable and dependable performance. Plus to offer very amazing effects, such as chasing, rain, or coloring-changes of various effects. Very eye-catching, dynamic, and extremely magnificent. Furthermore, be directly connected to any standard DMX controller, no need any decoders.
Installation Benefits
As the most important key word of being seamless totally makes sense here. E.g., the cable could be perfectly hidden to achieve seamless lighting connection for each other. And there are we have three approaches regarding front cable entry, side cable entry, and bottom cable entry. Which totally benefits you as the perfect lighting-line without any interruption.
Application
Applicable for many places, such as outdoor of building decoration, or indoor of atmosphere-creating. Extremely durable and flexible thanks to high quality of materials. ONE BIN ONLY color-consistency; very homogeneous & exquisite lighting outcome; and tons of coloring choices support you to do creative & unique lighting ideas.
